Power HAT
HAT PS AC/DC
Isolated mains supply: 85-500 VAC in, 24 VDC out
Powers a Node UIO stack straight from the mains, with no separate DIN-rail power supply. The wide input range covers single-phase and line-to-line on 230/400 V three-phase, and two 24 V terminals feed field devices such as sensors and transmitters.
Available now. Online shop coming soon.
Overview
What it does
It uses only the supply and ground pins of the HAT headers and passes everything else through, so any other HAT can sit on it.
An external slow-blow fuse rated for the supply voltage is required on the input. Installation must be done by a qualified person, in a suitable enclosure, to AS/NZS 3000. Not suitable for 480 V systems.
Features
- 85-500 VAC 50/60 Hz or 100-700 VDC input
- 24 VDC, 800 mA, 20 W, shared between the Node UIO and two output terminals
- 3000 VAC isolation, class II
- Short-circuit, overload and over-temperature protection, all self-resetting
- 1 A resettable fuse on the 24 V output, and a diode that stops back-feed into the stack

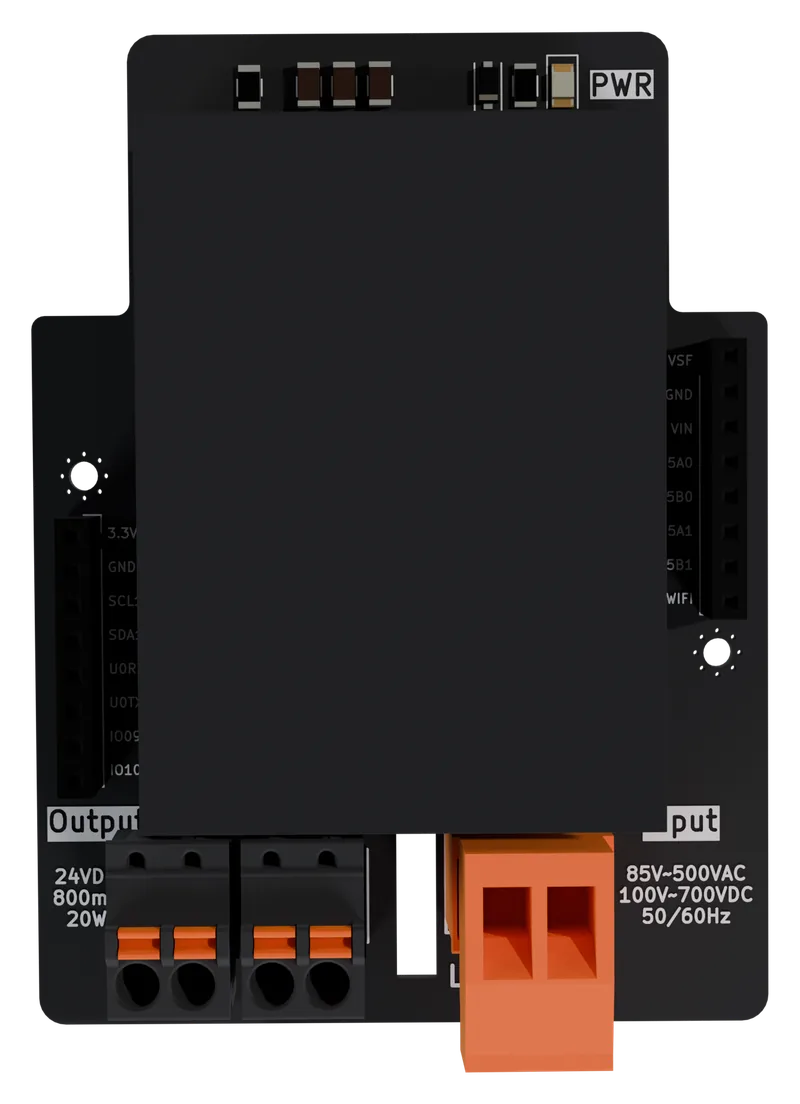

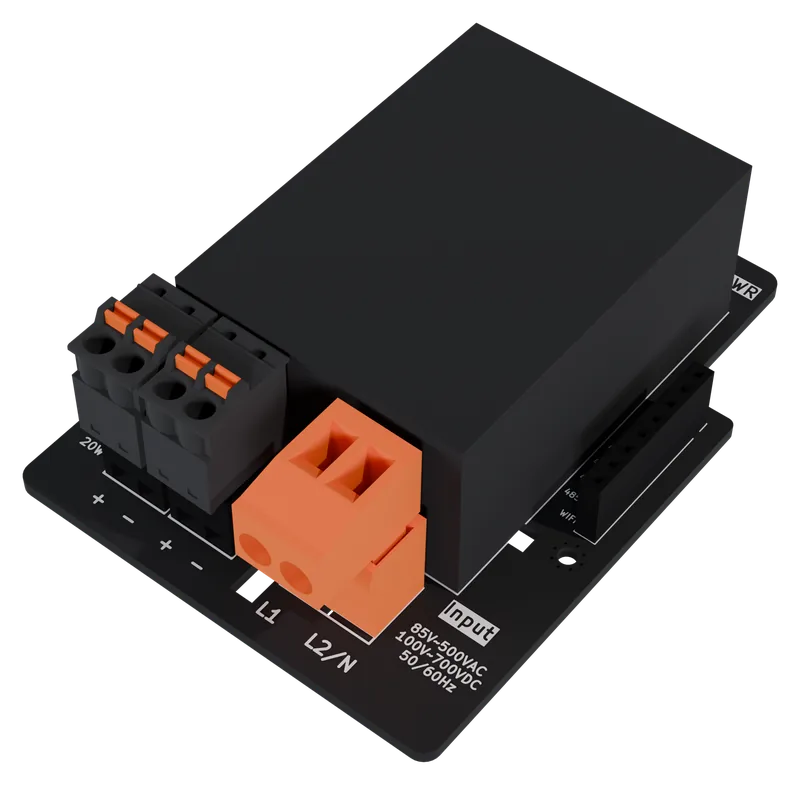

Views
Renders
Specifications
Technical details
Figures from the schematic, the module datasheets and the documentation on GitHub.
Documentation| Module | HIECUBE AP24N20-HV |
|---|---|
| Input | 85-500 VAC 50/60 Hz, or 100-700 VDC |
| Output | 24 VDC, 800 mA, 20 W |
| Isolation | 3000 VAC for 1 minute, class II |
| Efficiency | 86 % typical |
| Protection | Short circuit, overload (above 150 %), over-temperature; resettable 1 A output fuse; back-feed diode |
| EMC | EN 55032 Class B (module) |
| Connectors | Mains input (L1, L2/N), 2 x 24 VDC output |
| Module operating temperature | -40 to +70 °C, derated below 100 VAC and outside -25 to +40 °C |
| Board size | 55 x 74 mm, stacks on the Node UIO |
Software
What runs it
None needed. The Node UIO runs from the HAT's 24 V output as soon as the mains is on.
Downloads
Schematic and documents
Schematic
PDF, Rev v0.001, 85 KB
Documentation
Hardware notes and setup, on docs.modbee.org
